Mortar Net USA, Ltd.   Block-Flash

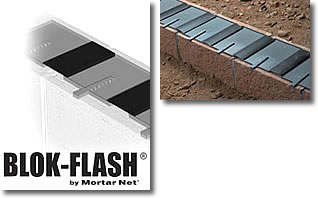

BLOK-FLASH® is an embeddable flashing device for exterior single wythe C.M.U. wall systems. It collects moisture that infiltrates the wall and flows down the vertical cores and diverts it to the exterior. BLOK-FLASH® is useful at all flashing/weep hole locations including base of wall, above door and window openings, above bond beams, in parapet walls, basements and any other locations where flashing is necessary.

Benefits:

• Useful in all 8", 10", and 12" exterior block wall applications.
• Maintains greater bond than through-wall membrane flashing.
• Eliminates the need for using multiple sizes of architectural C.M.U., reducing set up charges related to producing special sizes.
• Simple installation in reinforced wall systems.
• Reduces thermal break, helping to maintain the walls R-value insulation integrity.
• Saves more than half of the labor and material costs associated with using membrane flashing in a multi-wythe course.
• 45 degree drip edge to deflect moisture away from the wall system.
• Concaved weep spout for ease of tooling.
• Eliminates unsightly head joint weeping devices.
• Light weight and compact shape for convenient shipping, handling and storage.

URL: http://mortarnet.com/bfoverview.htm

Brochures | 3-Part CSI specifications | CAD details

Brochures
Preview	Description	Format	Size
	Blok-Flash (Product Overview) BLOK-FLASH® is an embeddable flashing device for exterior single wythe C.M.U. wall systems. It collects moisture that infiltrates the wall and flows down the vertical cores and diverts it to the exterior. BLOK-FLASH® is useful at all flashing/weep hole locations including base of wall, above door and window openings, above bond beams, in parapet walls, basements and any other locations where flashing is necessary.	HTML	5 kB

3-Part CSI specifications
Description	Format	Size
Block-Flash Technical data/sizes BLOK-FLASH® is a high-density polyethylene composition molded into a .0625 inch thick (1.59mm) flashing pan with .3125 inch (7.94 mm) perimeter flanges. The .0625 inch (1.59mm) concaved weep spout with a .20 inch (5.08mm) x .64 inch (16.26mm) opening and a 45 degree drip edge extends 1.0" (25.4mm) from the outer flange. The inner and outer flanges are spaced to allow for 1.0" of mortar bond between the upper and lower course of C.M.U. in 8", 10", or 12" wall systems. The weep spout ceiling extends 3.5" (88.9mm) from the outer flange into the center of the pan and acts to suspend mortar, keeping the weep channel clear. BLOK-FLASH® is impervious to water and includes chemical stabilizers to protect against UV degradation.	HTML	7 kB

CAD details
Preview	Description	Format	Size
	Block-Flash Specs/CAD		20 kB
