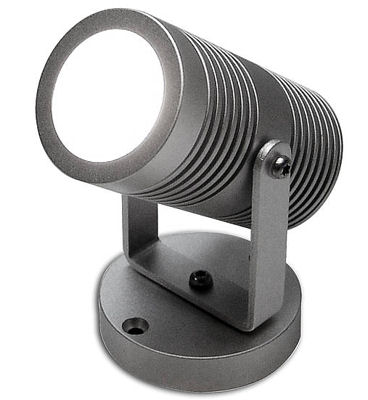

The Eyeleds BeamEYE is a compact, high performance surface mount luminaire. The integrated 6W Lamina LED has a light output equivalent to a conventional 20W halogen light.

This product comes standard with a 20° lens or optional 45° lens to achieve the right solution for your application. Combined with its rotatable and adjustable reflector head, the BeamEYE is the ideal task lighting solution for locations where space is limited.

The BeamEYE operates on 8 to 33VDC and can be connected to battery power at yachts, caravans and RUVs. This luminaire can be switched on and off individually by means of a push button located at the base of the fixture. In addition, the push button allows for step-free dimming and the built-in electronics ‘remember’ the previous dim setting after (central) off/on switching.

Anywhere, where there is need for sustainable task and accent lighting, in living areas or commercial applications, the Eyeleds BeamEYE is an innovative solution.

Features & Benefits

• Elegant, miniaturized design
• Light output equivalent to 20W halogen light
• Sustainable and energy-efficient 6W LED
• Various optics (lens options) available
• Wide range of DC operating voltage (8-30V)
• Step-free dimming and individual on/off switch
• IP60 damp location rated and suited for bathroom use

Applications

• Orientation and accent lighting for walls and ceilings
• Well suited for showcases and under cabinet application
• IP60 damp location rated and suited for bathroom use
• Suited for 12 and 24V battery power in yachts, caravans and RUVs
