Contex   3D Printers: DESIGNmate Mx

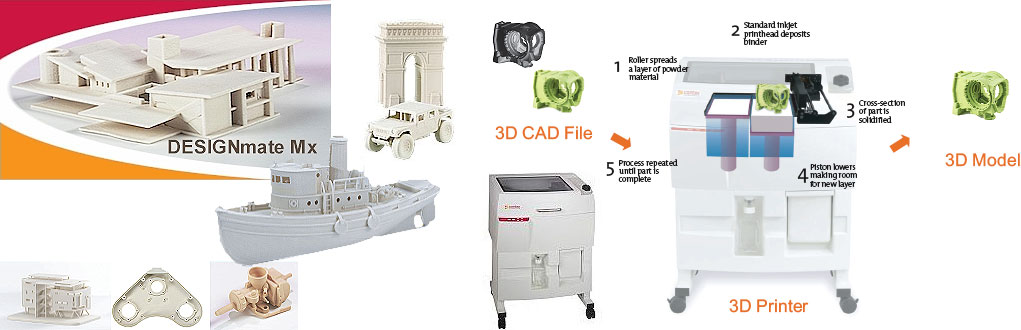

The Contex DESIGNmate Mx creates physical models directly from digital data in hours instead of days. The DESIGNmate Mx is fast, versatile and simple, allowing engineers to produce a range of concept models and functional test parts quickly and inexpensively. The system is ideal for an office environment or educational institution, providing product developers easy access to a 3D Printer. The DESIGNmate Mx¿s sleek design and straightforward user interface make it the ideal entry-level rapid prototyping system. In addition, the versatility of the machine allows users to make parts quickly for early concept evaluation and testing, or painted parts for a finished look.

DESIGNmate Mx Specifications

Build Size:
8" x 10" x 8" (203 x 254 x 203 mm)

Layer Thickness:
User selectable at the time of printing; 0.0035"-0.008" (.089-.203 mm)

Material Option:
zp130 High performance composite.

Equipment Dimensions:
29" X 34" X 43" (74 x 86 x 109 cm)

Equipment Weight:
255 lbs. (115 kg)

System Software:
Contex's proprietary software accepts solid models in STL, VRML and PLY file formats as input. DESIGNprint software features 3D viewing, text labeling, and scaling functionality. The software runs on Microsoft Windows* NT, 2000 Professional and XP Professional.

URL: http://www.contex.com/3dprint/3dprinters/designmatemx/

Brochures
Preview	Description	Format	Size
	DESIGNmate Mx An Ideal Entry-Level Rapid Prototyping System	PDF	1.1 MB
