About CableView® Stainless Steel Round Cable Railing System

CAD details

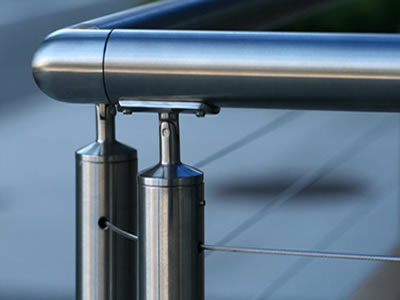

CableView® Stainless Steel Round Cable Railing System

Our Stainless Steel Round post and top rail components offer a smooth, lustrous frame option that immediately adds a spark of style to any application. While this pipe-like design easily lends itself to an industrial or contemporary theme, the universality of shining steel and softness of a corner-free shape allow it to blend with virtually anything.

  • Matte 180 grit finish
  • 2” diameter cylindrical tube
  • Post available 36”, 42”, or custom height, and can be deck, fascia, or core mounted
  • Compatible with any of our cable and end fitting assemblies
  • Matching handrail comes in two diameter options: 2” or 1.5”
  • Posts caps connecting posts to top rail are available in a variety of options: fixed, articulating, 90 degree corner, and coped collar

CAD details for CableView® Stainless Steel Round Cable Railing System

CAD details for CableView® Stainless Steel Round Cable Railing System
Preview Description Format Size View Download
Stainless Cable & Railing Inc. CAD Detail Categories
The Stainless Cable & Railing Inc. CAD Details below are complete drawings that can easily be downloaded, customized for your residential or commercial project, and included in your CAD library for future use.
HTML     Download
