  News

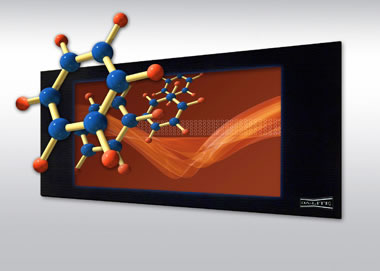

3D Virtual Black™ projection screen from Da-Lite


  Subscribe to FREE newsletter  Aug 07, 2008

3D Virtual Black™ projection screen material is designed exclusively for 3D rear screen applications. Specifically designed and dedicated as the first rear screen 3D projection fabric in the industry, 3D Virtual Black™ features breakthrough polarization preserving properties engineered by Da-Lite Screen Company’s research chemists.

3D Virtual Black™ effectively eliminates stereoscopic cross talk or “ghosting” by maintaining 99 percent polarization purity, an industry first for 3D projection.

The 3D Virtual Black™ fabric has the industry’s highest extinction value. The result is a new dimension in 3D passive stereoscopic viewing. Other major benefits of 3D Virtual Black is its seamless 16-foot height and that it easily folds for transportation, making it perfect for traveling or rental applications.

Markets for the 3D Virtual Black™ screen fabric include the movie and entertainment industry, oil and gas surveying applications, medical and pharmaceutical applications, robotic surgery, museums, industrial and architectural design and the electronic gaming industry.

 Specifications
 Material Type Flexible Rear Screen
 Gain  3.0
 Half Angle  10 degrees
 Front Reflectance Value  .5
 Minimum Throw Distance      1.5 x image width
 Ambient Light Resistance  Excellent
 Edge Blending Properties  Poor
 Passive 3D Use  Excellent
 Lay Flat Quality  Excellent
 Flame Resistance  Flame Certificate
 Size Limitations 16' high x any width
 Framing and Design  Fixed, retractable, muli-masking and portable
  • Available in seamless sizes up to 16' high by any width
  • Preserves stereoscopic (passive 3D) images (99% retention)
  • Moderate focal length required
  • Identical gain and color matching for multiple screen applications
  • Excellent in environments where high ambient light is present
  • Washable
  • Foldable
