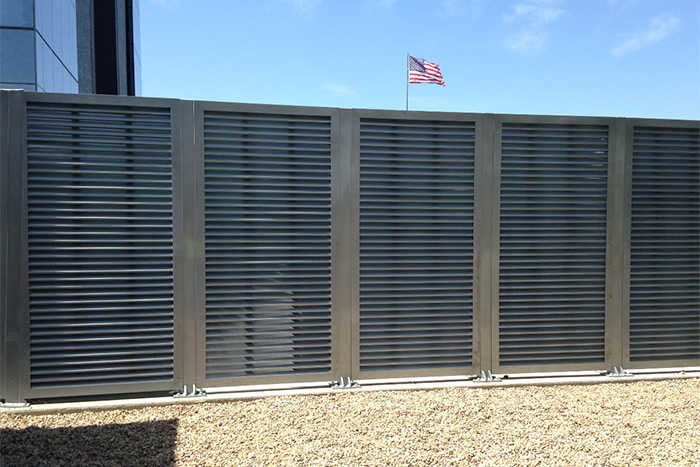

PalmSHIELD Unveiling The Future for Architectural and Mechanical Equipment Screens



From custom infill materials (including architectural louvers—the favorite of engineers and designers nationwide) to a variety of finishes, we’ve got you covered.

Whether your project calls for architectural or mechanical equipment screens, a modern aesthetic, or a blend with natural surroundings, PalmSHIELD Elite delivers unmatched versatility.

• Engineered to withstand wind speeds of up to 150 mph.
• Achieve up to 180 mph wind speeds with additional supports.
• Pending Miami Dade County N.O.A.
• Minimal parts and a streamlined installation process.
• A variety of designs to match your building’s exterior.
• Tailored solutions to meet unique project requirements.

Two Sided Finish
The Elite framework provides a finished appearance on both the inside and outside of the panel.

Improved Appearance
Our new PalmSHIELD Elite system has a consistent 3” reveal around each panel. All infill designs incorporate into the vertical channels, providing a clean and sharp finish.

Pre-Panel Post Setup
The new tubular T + I-Beam column design allows you to set all your posts and then remove one of the I-beam flanges where you can slide the panel from the backside. Reattach the flange forming an I-Beam column and capturing the new vertical compression channel between the flanges of the I-Beam.

Quick-set Post With Tolerance
The column and vertical panel connection is designed with an architectural vertical seam. If your post setting varies, plus or minus a 3/8” inch, you will increase or decrease the architectural seam width.

Slope Adaptability
Panel installed elevations may vary at post by a -2.5% to 12%.

Faster Installation
Columns will arrive with the removable flange fully attached. Remove or loosen the flange and slide in the panel. A raised serrated edge will lock the panel into the column, not requiring additional fasteners.
