Rollback Gate Safety System



Meets OSHA Requirements: 1910.23(c) and ANSI 6.4.3

A free standing version of our popular Rollback Bay gate to protect workers on elevated access points for material transfer. Easy-to-use and install. Protects without hindering productivity. Two-gate system means one gate is always closed and OSHA compliant fall protection is in place.

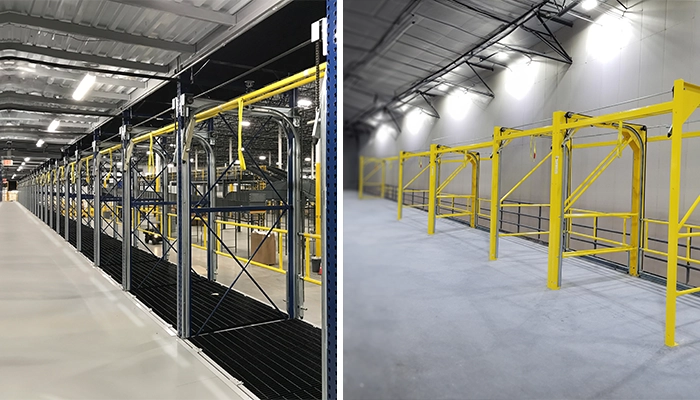

Rollback Gate Safety System

Features

  • Prevents falls from elevated access loading points while transferring material loads.
  • Heavy duty chains and roller tracks ensure long life and smooth operation.
  • Counteracting gates create a safe zone for loading/unloading areas
  • When inboard gate is opened, leading edge gate automatically closes.
  • Adjustable rails to accommodate unforeseen job site conditions.
  • Models available to accommodate single or multiple pallet loading.

Specifications

Outside Dimensions
Description Pallet Capacity** L WH
301348-6060(1) wide, (1) deep70" 70"108"
301348-7260(1) wide, (1) deep82"  70"108"
301348-9660(2) wide, (1) deep106" 70"108"
301348-10860(2) wide, (1) deep118"  70"108"
301348-60102(1) wide, (2) deep 70"112" 108"
301348-72102(1) wide, (2) deep82" 112" 108"
301348-96102(2) wide, (2) deep106"112" 108"
301348-108102(2) wide, (2) deep118" 112" 108"

Loading Zone Dimensions
Description Pallet Capacity**LW
301348-6060(1) wide, (1) deep60"60"108"
301348-7260(1) wide, (1) deep72"60" 108"
301348-9660(2) wide, (1) deep96" 60" 108"
301348-10860(2) wide, (1) deep108" 60" 108"
301348-60102(1) wide, (2) deep60"102"108"
301348-72102(1) wide, (2) deep72" 102" 108"
301348-96102(2) wide, (2) deep96" 102" 108"
301348-108102(2) wide, (2) deep108" 102" 108"
* Due to continuous improvement, specifications are subject to change without notice.
** Std. 48”x 48” pallet used for Pallet Capacity calculation.
  • Tracks and hardware zinc plated.
  • Gates are Powdercoated Yellow.
  • Top Rail Height = 42”
  • Lower Rail Height = 20"
  • Custom sizes also available.
Meets OSHA 1910.23(a) (8) and ANSI 6.4.3
