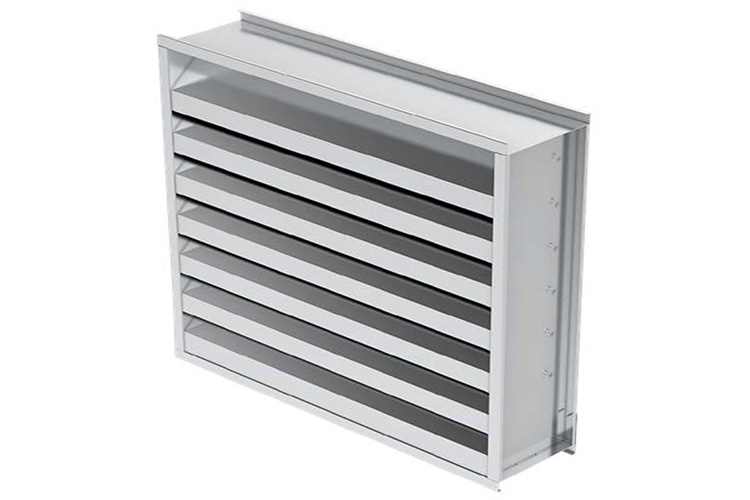

ACL1245V - Stationary Acoustical Louver Formed Louve

Ruskin® has introduced the ACL1245V, a 12-inch deep stationary acoustical louver engineered to deliver high-efficiency airflow with integrated noise attenuation for exterior wall intake and exhaust applications. Featuring insulated, mineral wool-filled blades arranged at a 45-degree angle, the ACL1245V provides meaningful transmission loss while maintaining low pressure drop and effective weather protection.

The ACL1245V is designed for applications where both acoustic performance and weather resistance are critical. Its V-shaped blades, spaced approximately 6 inches on center, combine an 18-gauge galvanized-steel exterior surface with a 22-gauge perforated-steel interior surface surrounding mineral wool insulation. This construction delivers a sound transmission class (STC) rating of 16 and an outdoor-indoor transmission class (OITC) rating of 10, with free field noise reduction reaching up to 32 dB in the 2,000–4,000 Hz octave bands.

Weather performance is equally robust with the beginning point of water penetration at 980 fpm (299 m/min) at 0.01 oz. per sq.ft., tested per AMCA Publication 511. The louver’s 22% free area supports efficient airflow while its architectural appearance suits a wide range of building façade designs. Available in galvanized steel and aluminum construction, the ACL1245V supports a maximum single-section factory assembly size of 60" inches by 120 inches, with larger assemblies field-built from factory sections.

Product Features:

• Excellent sound attenuation with an STC rating of 16 and OITC rating of 10, and free-field noise reduction of up to 32 dB
• Well suited to data center cooling and ventilation systems, helping reduce equipment noise at the building envelope.
• 22% free area for efficient airflow and low pressure drop.
• Water penetration resistance tested per AMCA 511, with a beginning point of water penetration at 980 fpm (299 m/min)
• 12-inch deep frame available in 16-gauge galvanized steel or 0.125-inch aluminum 5005-H34.
• V-shaped blades at 45 degrees with mineral wool acoustical insulation; featuring an 18-gauge galvanized-steel exterior and perforated interior surface.
• Optional accessories include screens, extended sills, installation angles, drip caps, and integral flanges.
• Optional paint finishes available

The Ruskin ACL1245V stationary acoustical louver is manufactured in an ISO9001-certified factory and is backed by a five-year limited warranty.

For more information on the ACL1245V, please visit the Ruskin website to access the information linked below:

ACL1245V Website Page (Link)
ACL1245V Product Data Submittal Sheet
ACL1245V CSI 3-Part Specification
ACL1245V 3D Revit File
ACL1245V Product Feature Video

Please contact your regional sales manager or [email protected] for quotes or product information.
