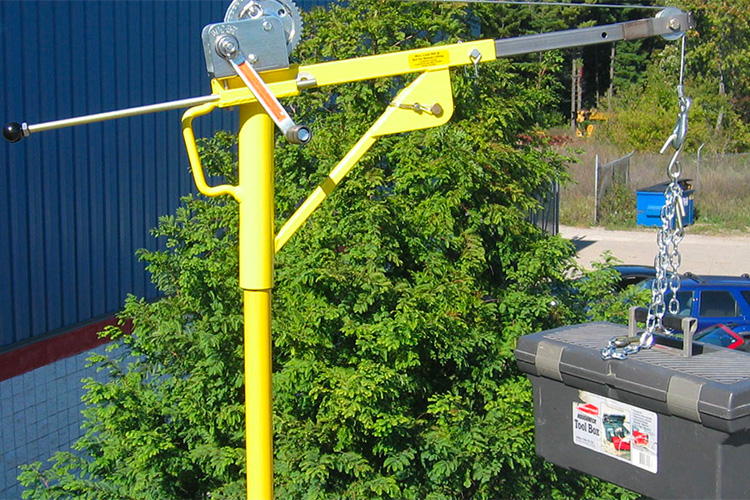

Cranky™ Portable Winch System – A Smarter, Safer Way to Lift Heavy Loads
September 23, 2025
The Cranky Portable Winch System gives contractors, HVAC technicians, and facility managers a lightweight, collapsible way to lift up to 300 lbs. safely and efficiently—without cranes or extra labor.
Weighing only 29 lbs., Cranky sets up quickly, works with multiple mounting posts, and includes OSHA-compliant safety features, making it a go-to alternative for safe rooftop and building access.
Key Features
- 300 lb capacity: Smooth 4.4:1 crank ratio for controlled lifting.
- Lightweight & portable: 29 lbs., collapsible for easy carry and storage.
- 360° rotation: Boom extends to 32", turning handle to 1'.
- OSHA-minded safety: Hand brake and back pulley for controlled operation.
- Durable build: Powder-coated finishes; stainless components for weather resistance.
- Versatile mounting: Works with building posts, roof hatches/vertical ladders, trucks, vans, or floor/roof mounts.

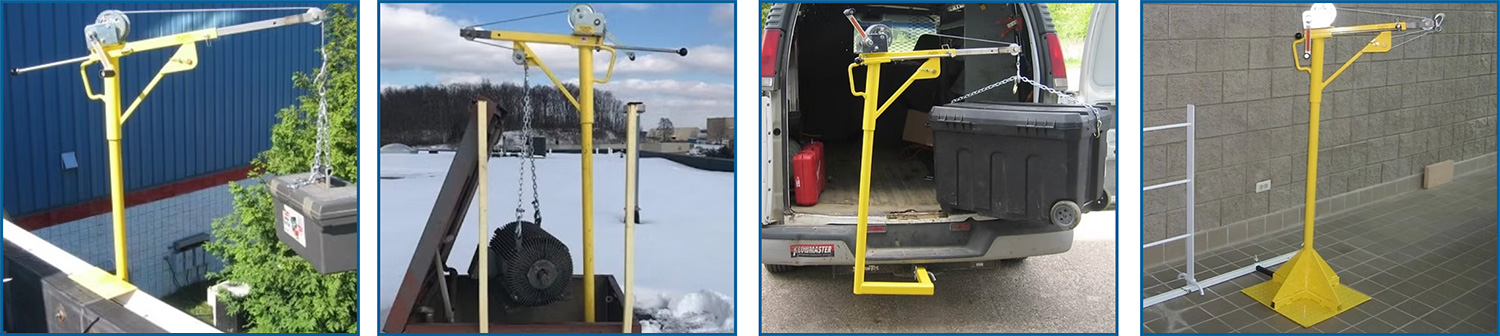

Mounting Options
- Port-A-Post™: Portable mount for roof hatch or some permanent ladders; typical setup in ~60 seconds.
- Building Mount Posts (Types 1–5): Flush mount, gutter saver, adjustable, pre-engineered metal building, and reinforced overhang variants (up to 26").
- Truck & Van Mounts: Fits standard 2" Reese-type receivers; designed so doors/tailgates still open.
- Floor/Roof Mount Post: Bolts to concrete or solid structure; engineering verification recommended for roof installs.
Why Choose Cranky?
- No crane rentals: Cut costs and avoid site shutdowns.
- Single-tech operation: Efficient setup and use by one technician.
- Always available: Portable, collapsible, easy to store and transport.
- Safe & compliant: Designed to meet OSHA lifting pull weight requirements.
- Vehicle friendly: Lift directly from trucks or vans for rooftop transfer.
Cranky vs. Traditional Lifting Methods
| Feature | Traditional Methods | Cranky Portable Winch |
|---|---|---|
| Cost Efficiency | Crane rentals and extra labor | Eliminates rentals; reduces labor |
| Worker Safety | Manual lifts increase injury risk | Controlled, OSHA-minded design |
| Portability | Bulky equipment, scheduling limits | 29 lbs., collapsible, on-demand |
| Ease of Use | Multiple workers needed | Single-tech setup and operation |
| Vehicle Compatibility | Difficult transfers from vehicles | Truck/van mounts with 2" receivers |
| Mounting Options | Dedicated hoists or external lifts | Building posts, hatches, vehicles, floor/roof |
Applications
- HVAC equipment: compressors, motors, toolboxes
- Rooftop service on commercial buildings and metal buildings
- Facility maintenance via roof hatches or vertical ladders
- Truck/van to rooftop transfers without cranes
Ready to Lift Smarter?
Get a safer, more efficient way to move heavy equipment—without cranes or costly labor.
@ladderport #ladderport #portable #winch
Company:
LadderPort
Product: Cranky Portable Winch System/Mounting Posts
Source: https://www.ladderport.com/cranky-portable-winch-posts
