Ambient light rejection (ALR) projection screen technology has been around for a while now. Despite this, there is some confusion in the AV marketplace as to how ALR works. Some of this confusion is caused by manufacturers making inaccurate claims or promoting non-ALR surfaces as a solution. To help clear the confusion, here are some things to remember about ambient light rejection:
All screens have varying reflective characteristics
Every screen has a certain percentage of diffuse reflection and specular reflection. Diffuse reflection is when light hits a surface and is reflected at all angles. Specular reflection is when light hits a surface and is reflected away at the opposite angle. The amount of specular reflection is the indicator of ALR performance.
For example, Draper’s Matt White XT1000E has 80% diffuse reflection and 20% specular reflection characteristics. This is definitely not the solution for ambient light since it is mostly a diffuser. Most ALR screen surfaces have a high percentage of specular reflection and reject 60% or more of ambient light while some—such as TecVision CS1200X ALR—has a high percentage of specular reflection at 82%, and a percentage of diffuse reflection at 18%.
Just because a manufacturer assigns an ALR value to a screen material doesn’t mean that solution is right for ambient light. Draper only publishes ALR information for screens designed to be an ALR solution.
A grey tint doesn’t make it ALR
Most grey screens have a grey tint, but are still mostly diffuse reflective surfaces. The grey tint only helps to improve contrast in moderate ambient light conditions. But that does not make it an ALR screen surface.
How an ALR screen works

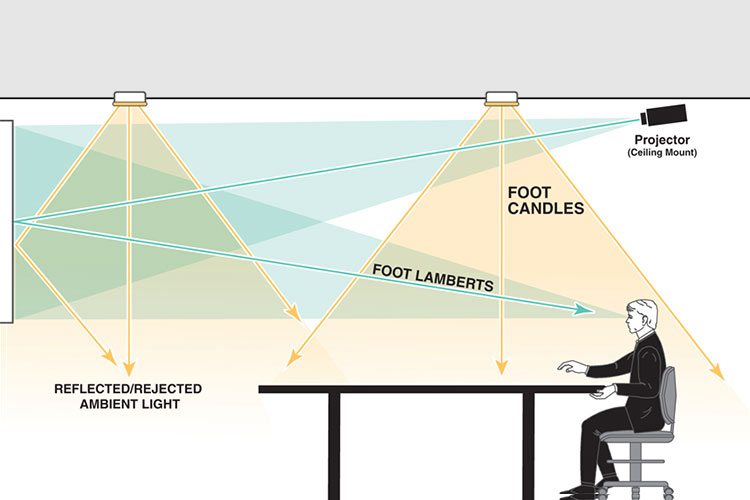

ALR screen surfaces work to keep non-projector light from reflecting back to viewers. Most do this by using specular reflective elements in the screen formulation. These elements reflect off axis light away from viewers. As with everything else, there can be trade-offs. The more specular reflective a surface is, the more ambient light it will reject, but the narrower the optimal viewing cone will typically be.
The real numbers Matter
Draper frequently tests our own projection materials to make sure they are within our reported specifications. We also test those of our competitors, and unfortunately, as noted in a previous post, they often fail to verify the numbers they publicly use. This includes ALR performance. While differences in testing conditions and equipment could have some effect on the numbers, they are usually too far off for that to be the only factor.
There are two ways ambient light rejection is communicated: by reporting how much ambient light gets through or how much is rejected. Draper uses the amount of ambient light being rejected to communicate ALR performance. Whatever number is used, though, one thing you can be certain of: our numbers reflect what we actually make. Or you don’t see that product.
For more information on choosing the ambient light-rejecting solution that’s right for you, click here.
Product: Projection Screens
Of: Terry Coffey
Over the past few years, the science of projection screens has made several major advances. Research and development of new methods and solutions have made the process of choosing a projection screen much different than it was just a few years ago.
To help architects and AV consultants keep up, Draper has released an updated version of our class on projection screen technology. Projection Screens 301: Updated Science of Projection Screens (PS301) contains the latest information on specifying the right screen solution.
The course objective is to provide a clear understanding of the various factors to consider when choosing a projection screen.
Among the factors taken into consideration are:
- Content/Use of system
- Seating Configuration
- Ambient Light Levels
- Room Dimensions
One of the biggest updates in screen science has been the ability to deal with ambient light conditions.
In the past, the majority of viewing surfaces had mostly diffuse reflection. These typically matte materials are best for extremely wide off-axis viewing, blending, and short throw projection. They reflect as much projected light as possible out to viewers at all angles. While this is great for spaces with low or no ambient light, if there is ambient light it will also be reflected out to viewers at all angles, “washing out” the image.
For a time, screen companies tackled ambient light with grey screens. While a grey tint can help improve contrast and absorb unwanted stray light scatter, it isn’t a true ALR solution. Many grey screens are diffusive, so they are still reflecting ambient light to the viewers.
ALR surfaces are specular reflective. They reflect the projection light back to the viewers, but reflect off-axis ambient light away from the viewers. Most ambient light hits the surface and reflects at an opposite angle of incidence. For example, off-axis light at 65 degrees will mostly bounce 65 degrees in the opposite direction. The amount of light it reflects away from the viewer is dependent on the amount of reflective properties in the surface’s formulation. The more specular reflective in performance, the better the ALR properties. However, this typically reduces off axis viewing performance. For instance, Draper offers screen surfaces that reflect 60%, 73%, and 82% of ambient light.
PS301 also covers contrast. Image contrast affects how well you can read, which means it affects detail and resolution. Low contrast reduces image detail and resolution, while high contrast increases detail and resolution. Image contrast is even more critical when the application involves high resolution graphics, medical imaging, control rooms, and CAD applications.
System contrast is an average of measurements of black at different locations on the screen, compared to white at different locations on the screen. This is measured in the existing lighting conditions of the application. Ambient light will affect the measurement of black. When measuring system contrast an ANSI checkerboard pattern is used.
Other subjects covered and updated include gain, hotspotting, throw distance, sizes, formats, and solution design using online calculators.
Updated Science of Projection Screens earns one AIA learning unit for architects, or one learning unit toward CTS renewal for those in the AV industry.
To learn more about all of Draper’s continuing education offerings, and to register for in-house presentations, click here.
